Vliegklaar gewicht:
Met 2x 3S 4000 mAh accu's = 3100 gram
Uitslag roeren:
ailerons = up 12 mm, down 12 mm
elevator = up 14 mm, down 14 mm
EDF:
Motor = QX-Motor QF2822 4300 kv 64 mm categorie 12 blads
Maximaal 10 seconden 80 A ofwel 10 seconden 1280 Watt
Let op, daarom met de 60 A ESC de throttle terug zetten tot 75 %
Vermogen:
bij throttle 75% met 3S 4000 mAh = motor 1 bij 12,5 Volt 67 A ofwel 800 Watt
bij throttle 75% met één batterij 3S 4000 mAh = motor 1 + 2 bij 12,2 Volt 105 A ofwel 1060 Watt
bij throttle 70% met 3S 4000 mAh = motor 1 bij 12,5 Volt 55 A ofwel 625 Watt
Motoren
gewicht 135 g per stuk / edf huis plus motor
64 mm EDF
12 blads
motor QF2822 4300 kv alleen geschikt voor 3 S

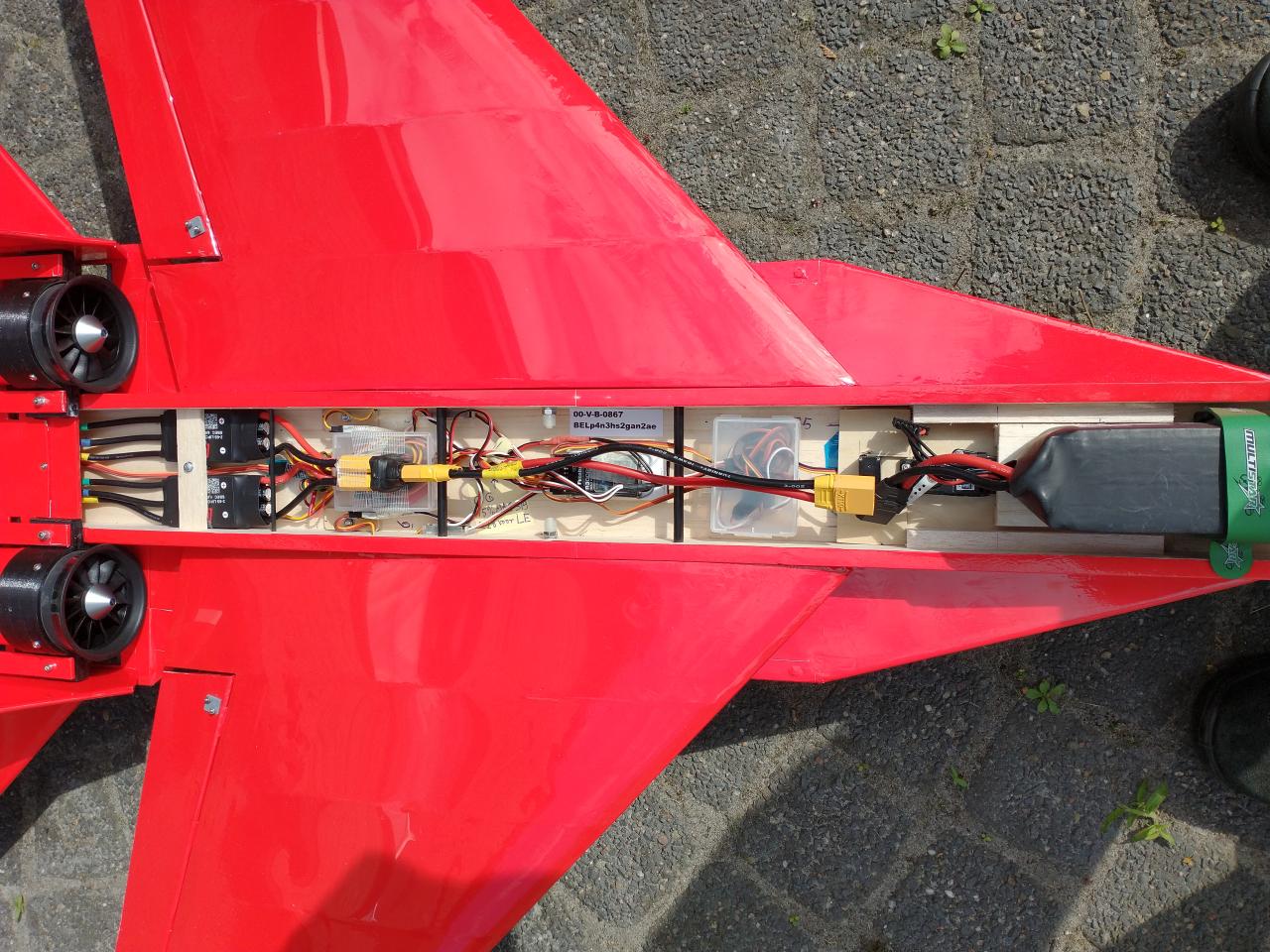

Zie specificaties in de foto's hieronder
